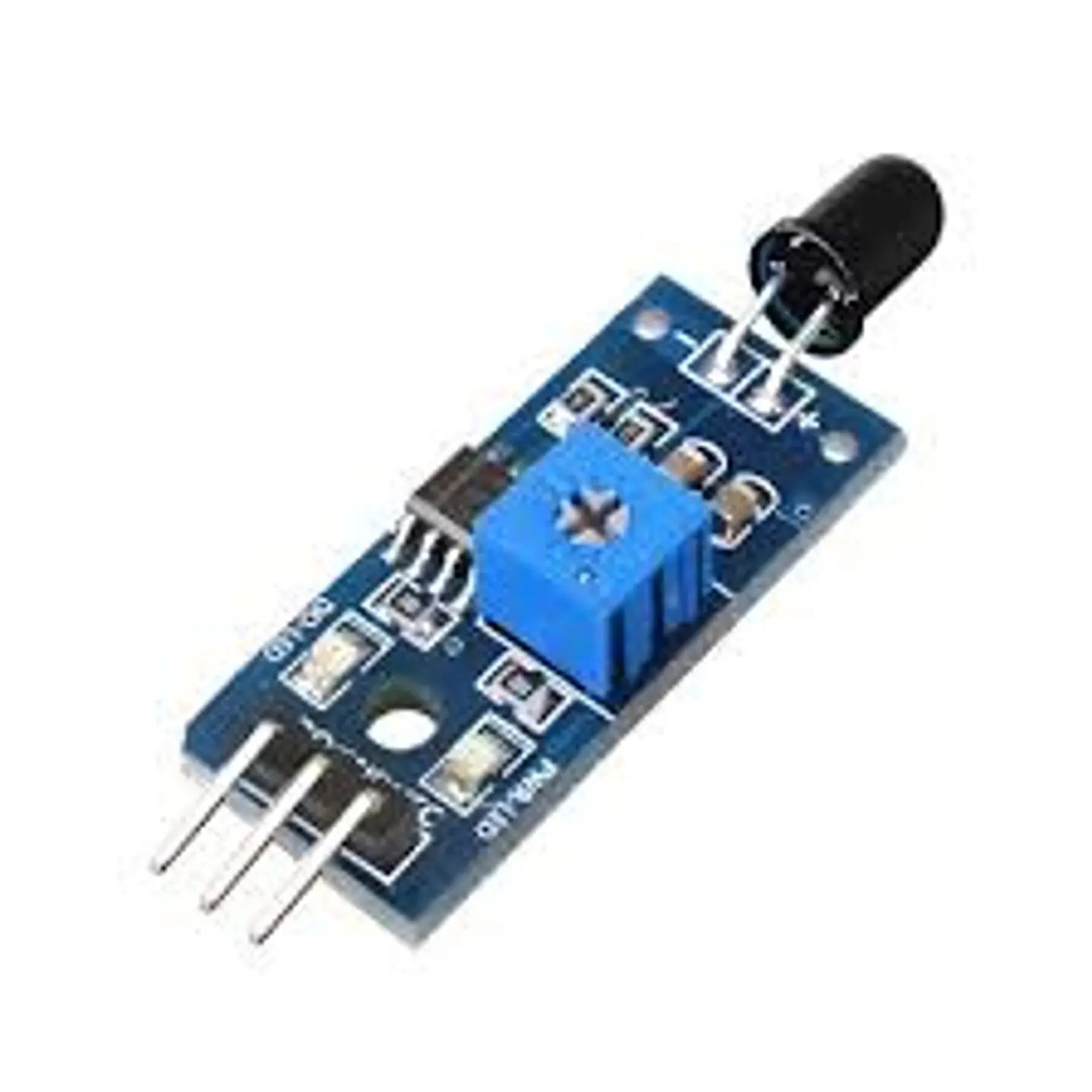

Flame, Flame or Fire Sensor SHT113

This flame sensor module allows us to detect the presence of fire, this thanks to the NPN phototransitor that is sensitive to infrared light (760-1100nm) and that in the presence of fire is polarized and allows the passage of current. The current passes through a resistor and generates a voltage drop, this voltage is delivered to the analog output and serves as the input of the opamp comparator that delivers a digital output. The level of sensitivity is adjustable by means of a potentiometer.

The flame sensor is used in fire detection systems, battle robots (warbots) and gas heating systems.

Main features:

• Operating Voltage: 3.3V - 5V DC
• Detection range: 60°
• Working temperature: -25°C up to 85°C
• Detectable wavelength: 760 - 1100 nm
• Opamp LM393 in plate comparator mode
• Potentiometer for regular sensitivity
• 1 digital output
• 1 Automatic output
• Dimensions: 40*14 mm
